Introduction
HB Products keeps various adaptors in stock. The product range covers thread adaptors from 1" to 1 1/2" with NPT, BSPP and 1 1/8" UNEF.
Technical details
- For mounting on 1 1/8" UNEF, 1" NPT, 1" BSPP or 1 1/2" BSPP threads
- Made in stainless steel – AISI 304
Specifications
Drawing
HBS/ADAP/9/2

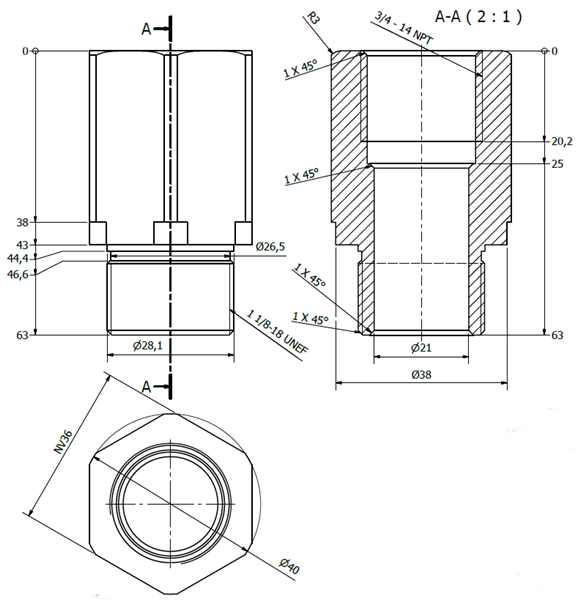

HBS/ADAP/7/2
| Mechanical specifications | |
|---|---|
| Material | AISI304 |
Disclaimer
| Thread type | Ordering code |
|---|---|
| 1 1/8 UNEF - 3/4" NPT | HBS/ADAP/7/2 |
| 1" BSP - 3/4" NPT | HBS/ADAP/8/2 |
| 1" BSP - 3/4" BSP | HBS/ADAP/8/6 |
| 1" NPT - 3/4" NPT | HBS/ADAP/9/2 |
| 1 1/2" BSP - 3/4" BSP | HBS/ADAP/11/6 |
| 1 1/2" BSP - 1" BSP | HBS/ADAP/11/8 |
