Introduction
HBEJ-MK2 is an oil ejector for automatic oil drainage for industrial ammonia refrigeration systems. The ejector is used together with an HBOR oil pot controller and 2 magnetic valves. The ejector uses hot gas as propellant and is designed for a hot gas pressure of max 120 bar. The ejector is made in stainless steel and has compression fittings as well as a thread connection.
The ejector is a simple economical solution for transporting oil from point A to point B without worn parts and with a low energy consumption.
Technical details
- Ejects 0.1 litres of oil per minute.
- Compression fitting design for easy installation – Oil in: Ø10 mm / Oil out: Ø10 mm.
- No movable parts – limited servicing
Specifications

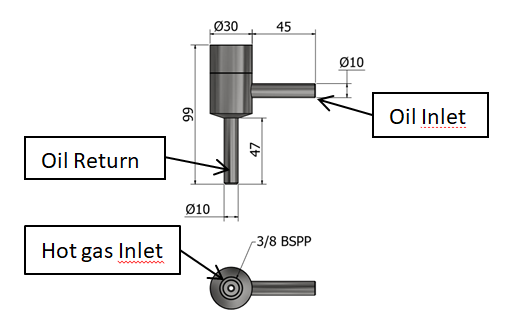

Drawing
| Environmental conditions | |
|---|---|
| Ambient temperature | -30°C...+50°C |
| Liquid temperature | -60°C...+80°C |
| Max pressure | Max 120 bar |
| Mechanical specifications | |
| Hot gas connection | 3/8” BSPP |
| Oil return line | 10 mm |
| Oil inlet | 10 mm |
| Material - liquid parts | AISI304 |
Applications

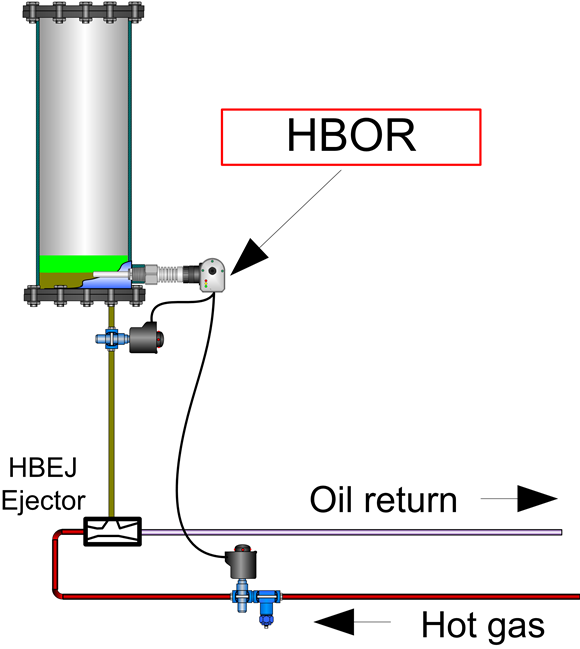

System design (NH3-system)
Disclaimer
| Oil capacity | Connection | Ordering code |
|---|---|---|
| Oil ejector (0,1 l/min) | 3/8” BSPP / Ø10 / Ø10 | HBEJ-0.05-G3/8-MK2 |
