Introduction
HBAC is used for detecting leakage in cascade systems. The sensor triggers an alarm if there is an CO2 leak in the NH3 part. A leak results in several hours of cleaning the pipes and heat exchanger. If a CO2 leak occurs in the NH3 part, salt crystals are formed. These salt crystals are very corrosive and lead to clogging of the parts. If the leak is not stopped in time, it can lead to extensive damage to
the heat exchanger, pipes, and pump.
The sensor detects even very small leaks.
Technical details
- CO2 leakage detection in NH3 cascade heat exchanger
- Simple to install with a sleeve. A cost-optimized solution
- LED indication for power and alarm status
- Single Shared design that make it easy to install and diagnostics. The electronic part can be easily removed from the mechanical part by two small screws.
Specifications
Connection diagram
Pin 1 & 2: 24 V AC/DC. Pin 2 & 3: Alarm output. Pin 2 & 4: analogue output (data logging). Pin 2 & 5: Activation of sensor functionality.

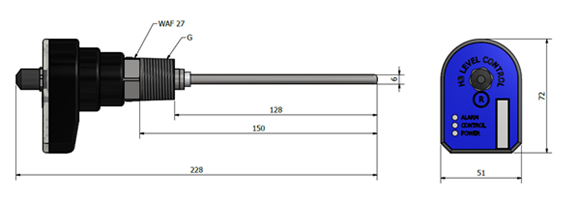

Drawing
L = 160 mm
| Power supply | |
|---|---|
| Voltage | 24 V AC/DC + 10% |
| Max. current consumption | 50 mA |
| Plug connection | M12 - DIN 0627 |
| Output | |
| Transsistor output | PNP, 1 A |
| Contact function | NC or NO |
| Environmental conditions | |
| Ambient temperature | -30...+50°C |
| Refrigerant temperature | -60...+80°C |
| Max pressure | 100 bar |
| Protection degree | IP65 |
| Vibrations | IEC 68-2-6 (4g) |
| Mechanical specifications | |
| Thread connection | 3/4” |
| Material - liquid parts | AISI 304 / PTFE |
| Materiale - electronic parts | Nylon 6 (PA) |
| Dimensions | 228x72x51 |
| Weight | 470 g |
| House design | Front |
| Approvals | |
| EMC test | EN 61000-2 |

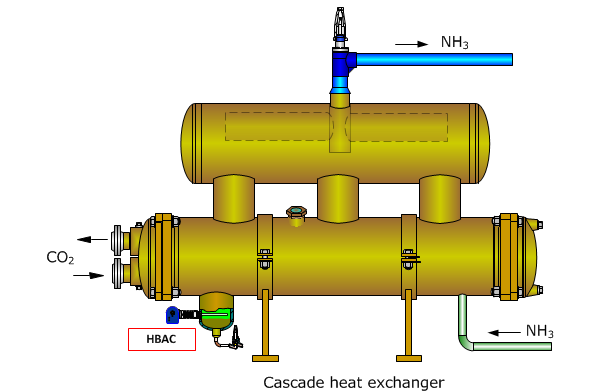

Applications
Disclaimer
| Output | Thread type | Ordering code |
|---|---|---|
| NO | 3/4" NPT | HBAC-1.6-NO-2 |
| NC | 3/4" NPT | HBAC-1.6-NC-2 |
| NO | 3/4" BSPP | HBAC-1.6-NO-6 |
| NC | 3/4" BSPP | HBAC-1.6-NC-6 |
| NO | Electronic Part for HBAC-NO | HBAC-EL-NO |
| NC | Electronic Part for HBAC-NC | HBAC-EL-NC |
| Insert length: 150 mm | 3/4" NPT | HBAC-1.5-2-MK2 |
| Insert length: 150 mm | 3/4" BSPP | HBAC-1.5-6-MK2 |
| Insert length: 300 mm | 1" BSPP | HBAC-3-8-MK2 |
| Insert length: 300 mm | 1" NPT | HBAC-3-9-MK2 |
| Electronic Part for HBAC-MK2 | Spare Part | HBAC-EL-MK2 |
