Introduction
HBPH-C1 is a display designed for connection with the HBPH sensor. In the display, it is possible to calibrate and set up the alarm limit. The display is provided in a version for installation into the front of a panel, as well as a version built into the cabinet. The cabinet version has a 110/240 V supply and can be installed either indoors or outdoors.
Technical details
- Display with programmable settings from the front of the display
- Displaying pH level - 0...100 % as well as alarm indication for high level
- 24 V AC/DC power supply
- Available in cabinet for 110/240 V AC supply
Specifications
Connection diagram
| Power supply | |
|---|---|
| Power supply | 24 DC + 10% |
| Current consumption | Max 600 mA |
| Electronic connections | Screw terminals |
| Wiring size | 2,5 mm2 |
| Input | |
| Analouge input - sensor | 4-20 mA |
| Analouge input - feedback | 4-20 mA |
| Relay function | Alarm - max level |
| Relay voltage | 5-25 VDC |
| Output | |
| Analouge output | 4-20 mA |
| Load | 3A/24VDC |
| Relay ouput | @24VAC / DC: 3A @110 VAC. 5A @240 VAC: 5A |
| Environmental conditions | |
| Ambient temperature | -20...+70 °C |
| Protection degree - front mounted | IP45 |
| Humidity | 20...80 % |

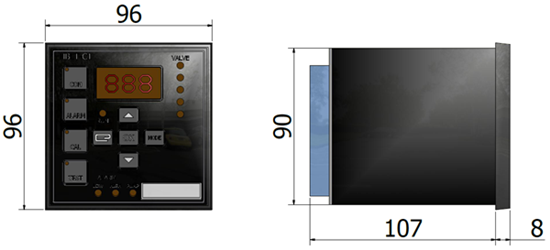

| Mechanical specifications | |
| Installation | Front of panel |
| Measure | 96x96x115 mm |
| Cutting dimension in panel | 92,8x92,8 mm |
| Materiale | Plastic |
| Approvals | |
| EMC | EN61000 |
| Display | |
| Display | Red LED, 3 digits |
| Alarm | Green and red LED |
| Programming | From front |
| Update frequency | 1 time/sec |
Disclaimer
| House design | Ordering code |
|---|---|
| Display for pH sensor - 24 V DC power supply | HBPH-C1 |
| Display for pH sensor built-in a cabinet and with a 110/240 V power supply installed | HBPH-C1-ENC |
